JOREST Connectable Contour Gauge (10+5 Inch) – Tile and Laminate Flooring Layout Tool for Faster, Cleaner Cuts on the Job Site
JOREST Connectable Contour Gauge (10+5 Inch) – Tile and Laminate Flooring Layout Tool for Faster, Cleaner Cuts on the Job Site
Couldn't load pickup availability
Why you'll love it
- Three-in-one sizing (5", 10", 15") via connectable gauges eliminates the need to buy multiple tools
- Ultra-thin 0.05" blade and tight 0.06" protractor spacing deliver accurate profile reproduction
- Lock mechanism holds the copied shape in place so both hands stay free for cutting

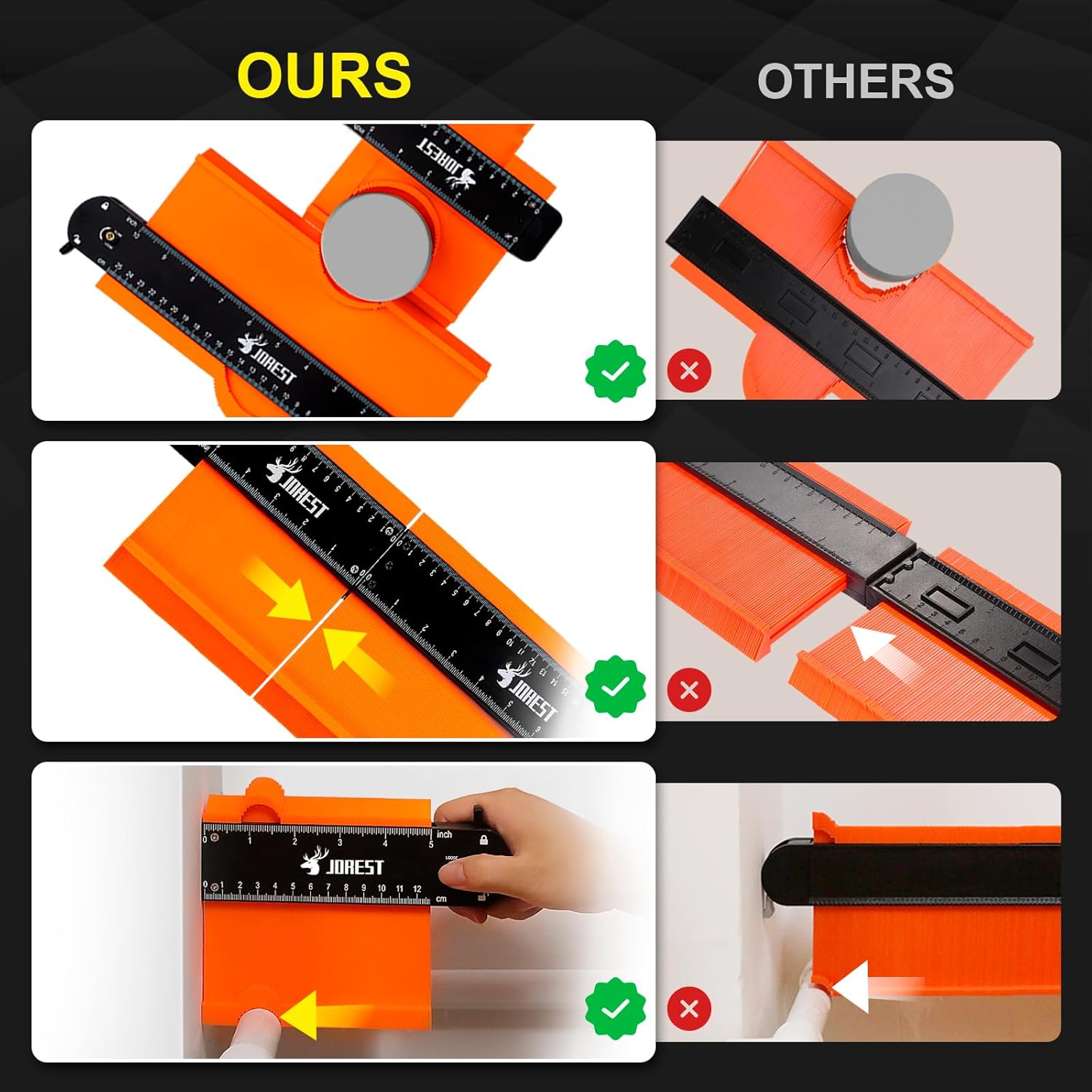

- Adjustable blade tension lets users fine-tune tightness for consistent tracing
- Works with a wide range of trades and DIY tasks from tiling to welding to wallpaper
Perfect for
- Trace and duplicate irregular shapes for tile and laminate flooring installation
- Scribe molding, baseboards, and trim against uneven walls
- Copy pipe contours and odd angles for woodworking joinery
- Cut vinyl plank, LVP, or carpet to fit around doorways and corners
- Gift a practical tool for Father's Day, Christmas, birthday, or anniversary
Product Information

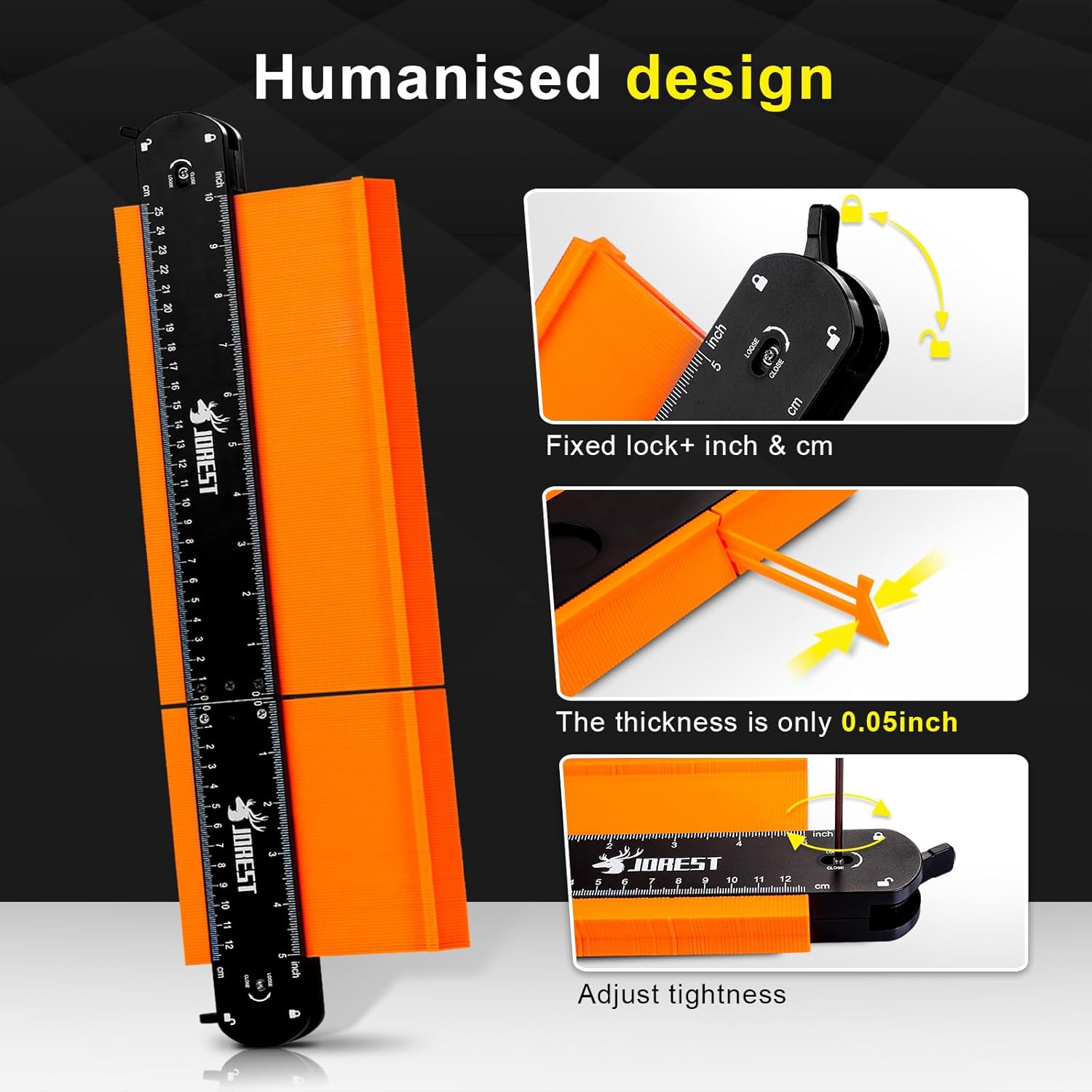

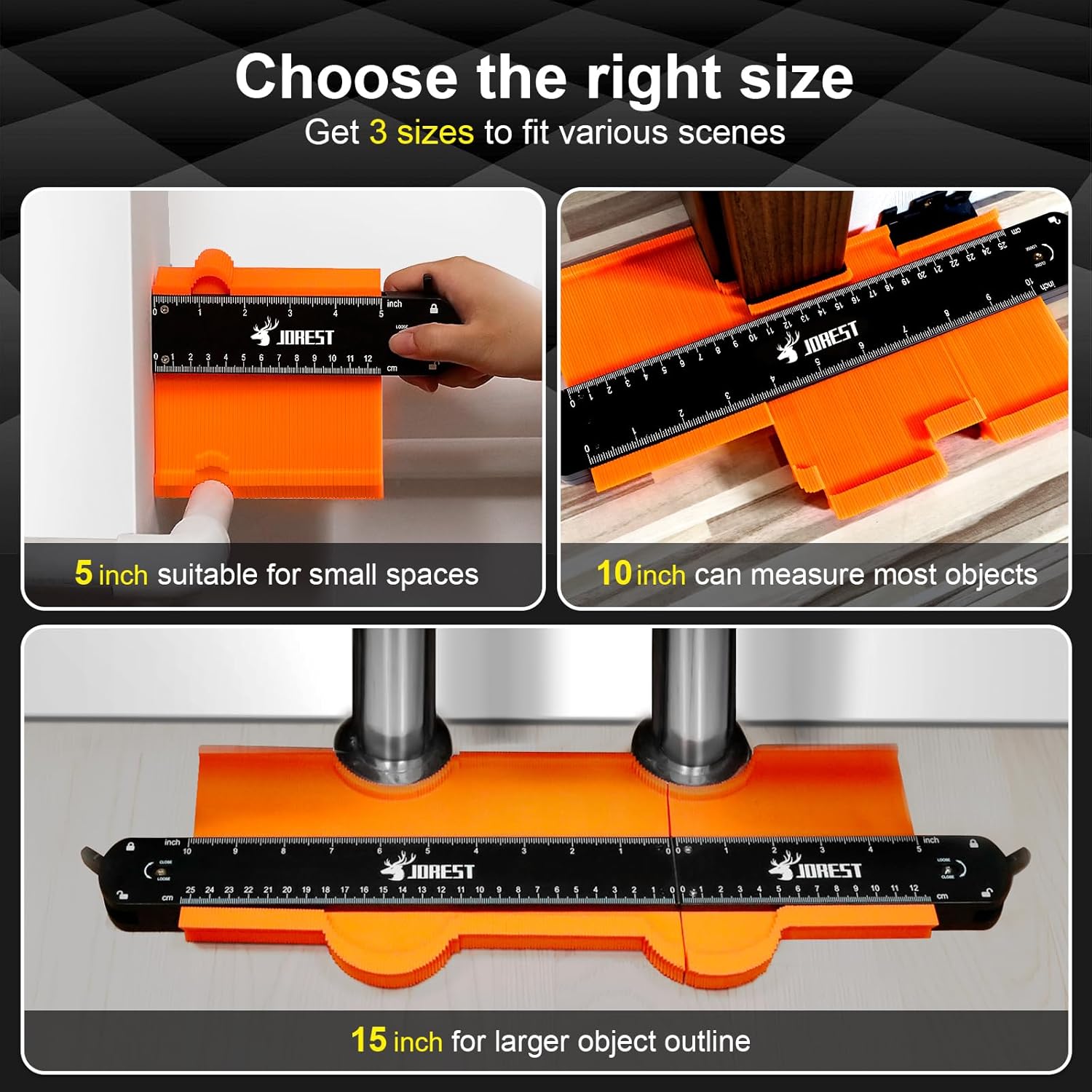

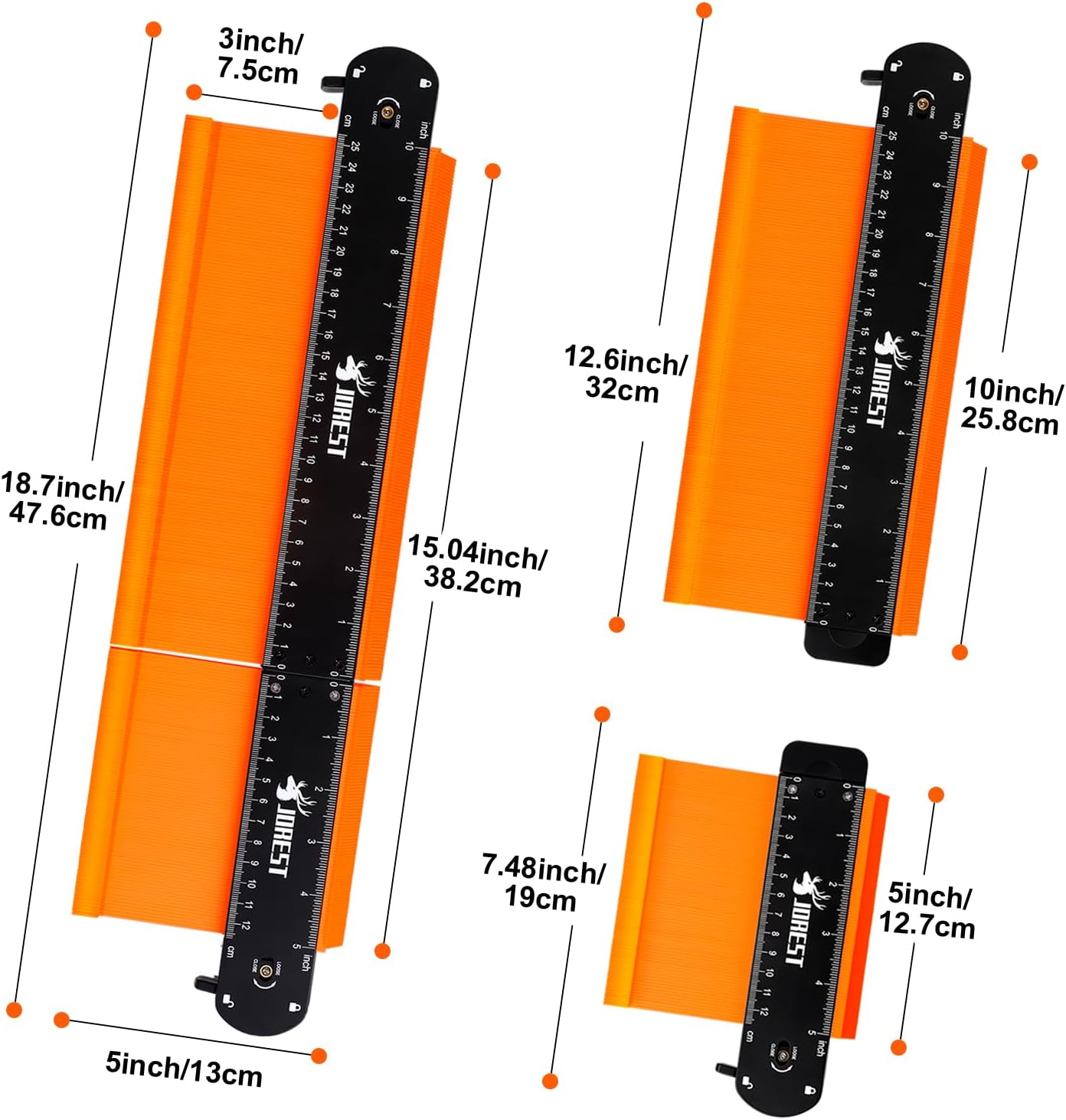

【Three Sizes】The 5-inch and 10-inch contour gauges can be spliced together so that you have three sizes of gauges - 5-inch, 10-inch, and 15-inch. 5-inch is perfect for tight spaces; 10-inch suits for most objects; and 15-inch is for larger objects. 【Multi Purpose】Being used with other tools such as pallet buster, crowbar, bradawl, carpentry tools, marking tools, leveler tool, oscillating tool, caulking tool, floor/baseboard cutter and so on. Be it vinyl tiles laying, tiling, hardwood/lvp/laminate flooring, carpet cutting, wallpapering, wall panelling, home improvement, wood working, winding pipes, moulding, welding, DIY, the JOREST contour gauge comes in handy while profiling work. 【Well-designed】1. the double-sided scale of the tracer is in inches and centimeters; 2. the thickness of the blade is only 0.05 inches, which makes the measurements accurate; 3. the protractor spacing is less than 0.06 inches after splicing; 4. the blade looseness and tightness can be adjusted with a screwdriver. 【Easy to use】You simply press the copied shape onto the material to be cut, then trim the contour. Odd shapes is also to be traced. This angle finder is a good helper for DIY handyman, craftsmen, woodworking workers, carpenters, construction architects, designers. 【Holiday Gift Guide】Have you ever seen a more versatile and unusual gift ideas? You can try out this unique cool gadget as the present for men/women who have everything while Christmas, Birthday, Anniversary, Father's Day.
Manufacturer JOREST Part Number AJJOCG0101ORDUS1 Item Weight 1.83 pounds Package Dimensions 12.83 x 5.59 x 1.89 inches Item model number AJJOCG0101ORDUS1 Size 15 Inch Style 15 Inch Package Item Package Quantity 1 Batteries Included? No Batteries Required? No
Frequently Asked Questions

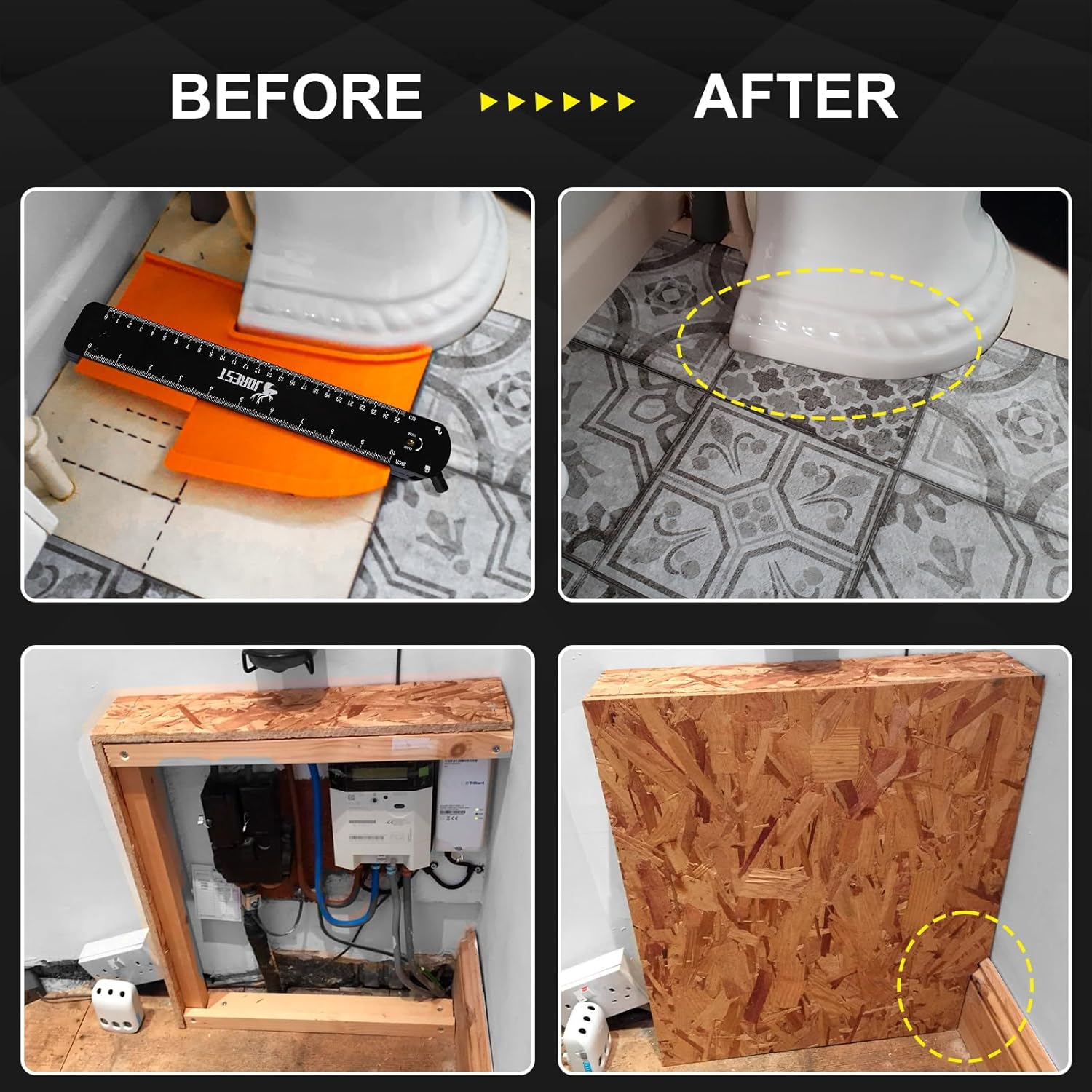

How does the locking mechanism help me work faster?
Once you press the gauge against an irregular contour, the lock holds every pin in place so you can walk the profile to your saw or cutter without it shifting, which removes the slow second measurement step.
Does the 0.05 inch thin blade really make a difference on the job site?
Yes. A thinner blade slips into tight corners, around pipes, and against baseboards more easily, so you capture the true shape on the first pass instead of fighting a bulky profile.
Can I adjust the blade tension for different materials?
Yes. A small screwdriver lets you tighten or loosen the pins, so you can set a stiffer feel for rough lumber and a looser feel for delicate vinyl and laminate.
Will the inch and centimeter scale on both sides save me time?
Yes. Reading measurements from either side means you do not have to flip the tool or convert units when working from plans in metric or imperial.
Does the connectable design really replace buying three separate gauges?
Yes. The 5 inch and 10 inch gauges click together to form a 15 inch gauge, so one purchase covers small trim, medium tile, and long molding without three separate trips to the store.
How much time does this save on a typical flooring job?
For most tilers and laminate installers, the gauge removes the slow cardboard template step entirely, often cutting fitting time per cut from several minutes to under a minute.
Is it efficient for measuring around multiple pipes in a row?
Yes. You can capture each pipe profile in sequence without re measuring, and the lock holds the contour while you transfer it to your material.
Does the tool stay accurate across a full 8 hour shift?
With proper care, the steel pins hold their tension and alignment, so the gauge stays reliable across daily job site use, not just a single project.
Can I leave the lock engaged while cutting the workpiece?
Yes. Many users keep the lock on and trace directly from the gauge, which frees both hands for the saw or knife and reduces the chance of an off cut.
Will the adjustable tightness help me avoid wasted material?
Yes. When pins are tuned to the material, the captured shape transfers cleanly the first time, which means fewer ruined planks, tiles, and trim pieces.
How does this support productivity for a one person contractor?
It removes the need for a second person to hold a template or trace a profile, so a solo operator can scribe, mark, and cut on their own with fewer interruptions.
Is it easy to switch between the 5, 10, and 15 inch sizes mid project?
Yes. The gauges click apart and back together in seconds, so you can size up for a long baseboard run and size down for a tight doorway corner without grabbing another tool.
Does the contour gauge help with repetitive cuts on long runs?
Yes. Once you lock in a profile, you can mark or trace it repeatedly along the length of a board, which is useful for wavy walls and repetitive scribe work.
Can I use it for quick on the fly measurements between tasks?
Yes. Its slim profile and light weight make it easy to toss in a tool belt or apron so it is ready whenever an odd shape shows up.
Does the double sided scale reduce the chance of misreading measurements?
Yes. Whether you read from the top down or the bottom up, the scale is clearly marked, which reduces errors that slow a project down.
Will this tool hold up under daily contractor use?
The steel blade, sturdy pins, and locking mechanism are built for repeated handling, so it tolerates being pulled, pressed, and carried throughout a normal workday.

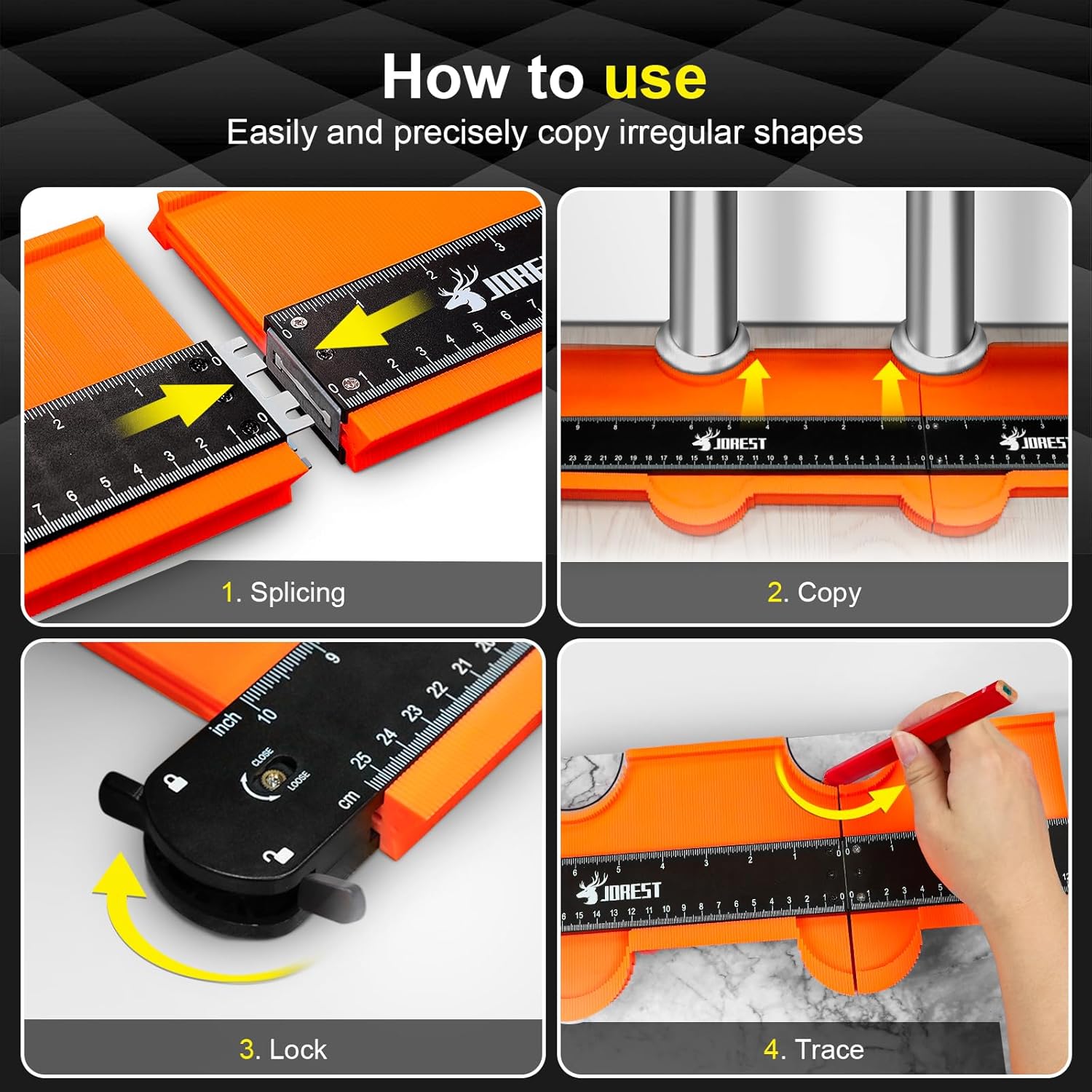

How do I use the JOREST contour gauge step by step?
Press the steel pins firmly against the object you want to copy, slide the lock to hold the shape, place the gauge on your workpiece, and trace along the locked pins with a pencil or knife to transfer the profile.

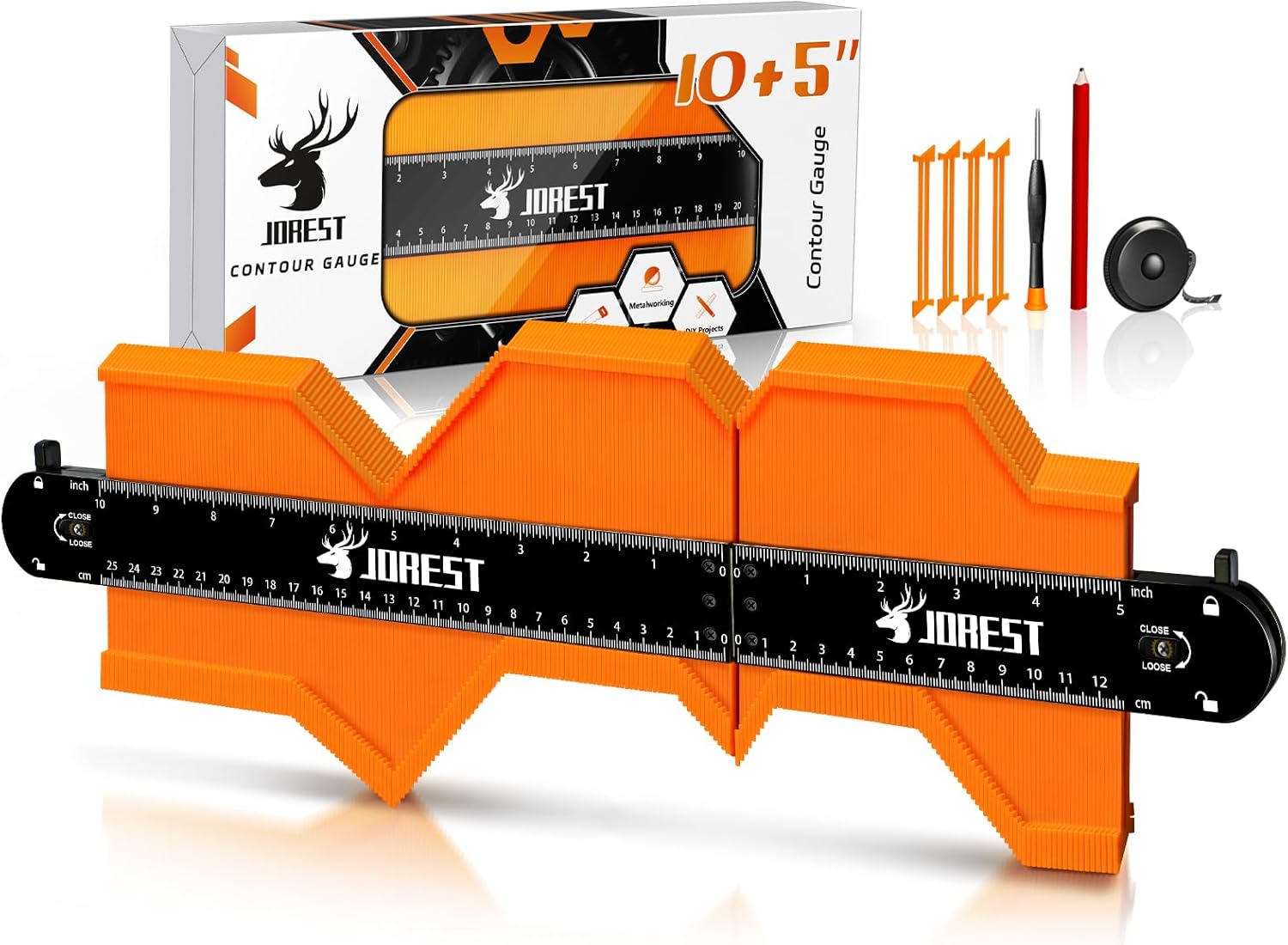

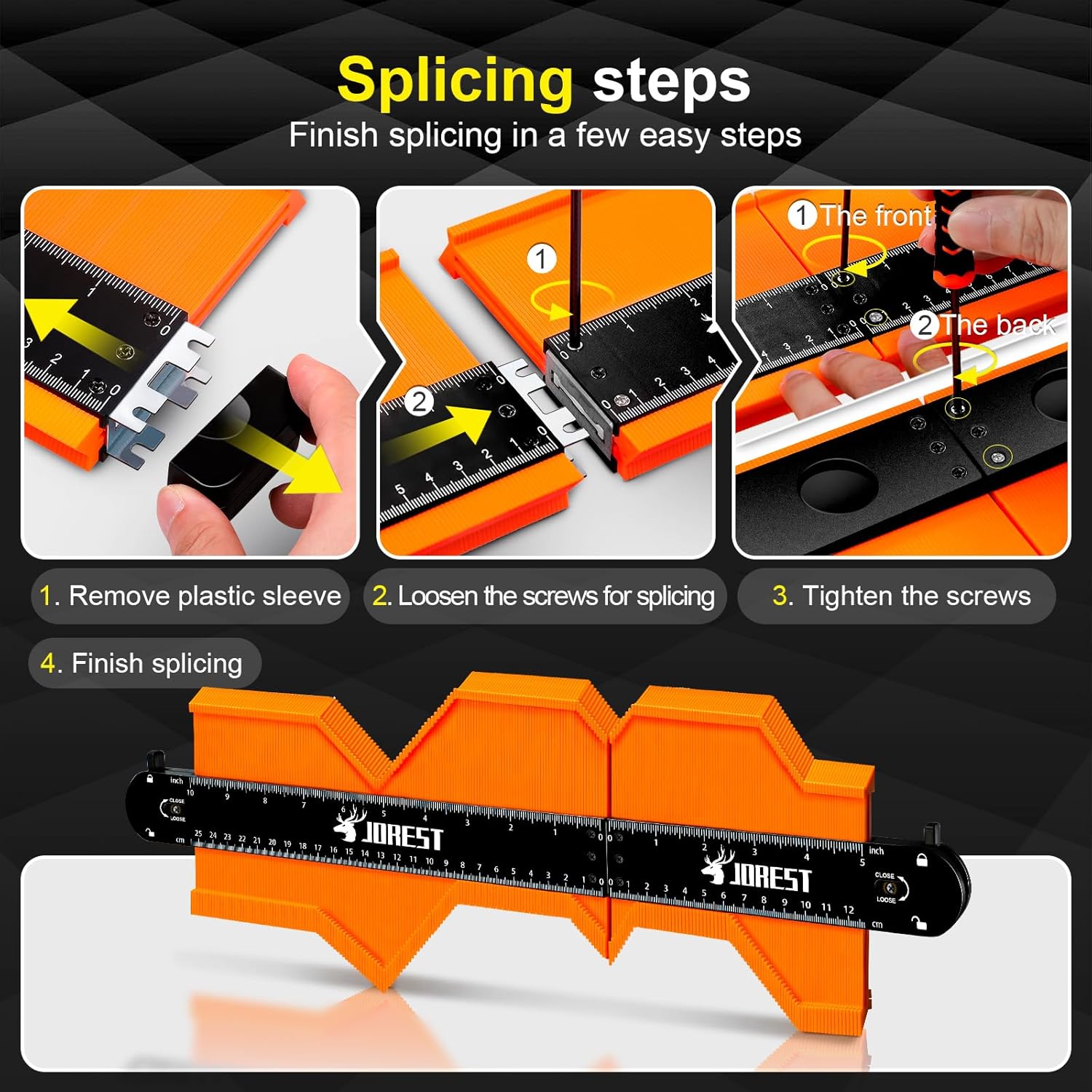

How do I connect the 5 inch and 10 inch gauges into a 15 inch gauge?
Line up the connecting tabs at the end of each gauge and slide them together until they click and seat flush, then use the combined length for longer profiles like crown molding and baseboard runs.
How do I adjust the blade tightness?
Use a small Phillips screwdriver to turn the tension screw on the gauge body. Tighten for stiffer pin movement on rough materials and loosen for smoother movement on delicate vinyl or laminate.
Does this work with vinyl plank, LVP, laminate, and carpet?
Yes. The thin 0.05 inch blade slips against most flooring materials including luxury vinyl plank, laminate, engineered hardwood, and carpet backing for doorway and corner cuts.
Will it capture profiles on tile, stone, and concrete surfaces?
Yes. Press the gauge firmly against tile edges, stone transitions, and concrete curbs, and the steel pins will register the shape for accurate flooring and trim cuts.

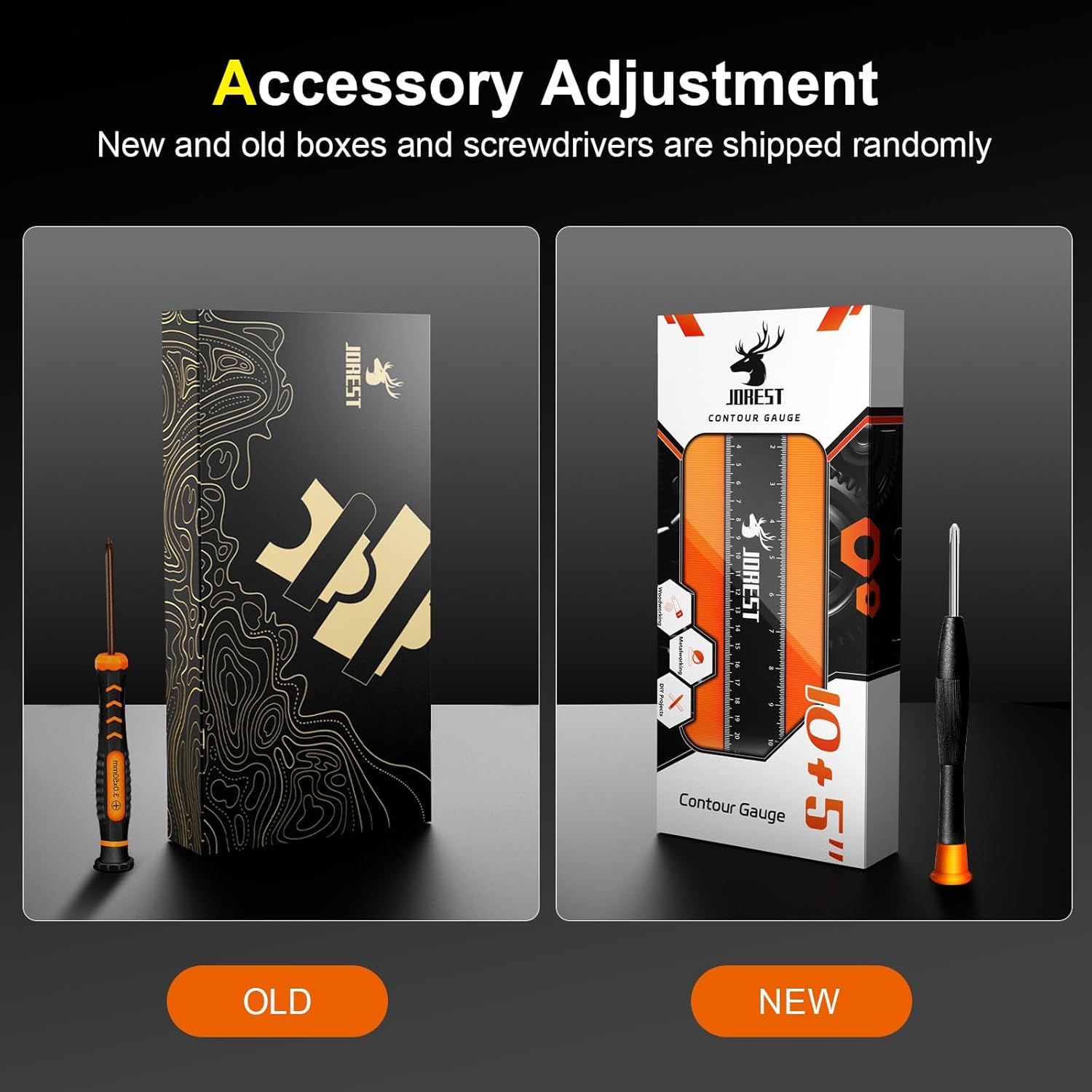

What is included in the box?
You receive the contour gauge in the size you ordered, either the 10 inch standalone version or the 10 plus 5 inch combo. No batteries, glue, or extra accessories are required.
Is this tool safe to use around children and pets?
The steel pins are smooth and blunted, and the locking mechanism has no sharp moving parts, so it is safe to store on a low shelf or in a family workshop with normal supervision.
How should I clean and store the contour gauge?
Wipe the pins with a dry cloth after use, occasionally apply a light machine oil to the pivot, and store the gauge flat in a drawer or hung on a pegboard hook to keep the pins aligned.
What is the difference between a contour gauge and a profile gauge?
They are the same category of tool. Both capture and transfer irregular shapes, and the JOREST version adds a lock, adjustable tension, and a connectable design that many basic profile gauges lack.
